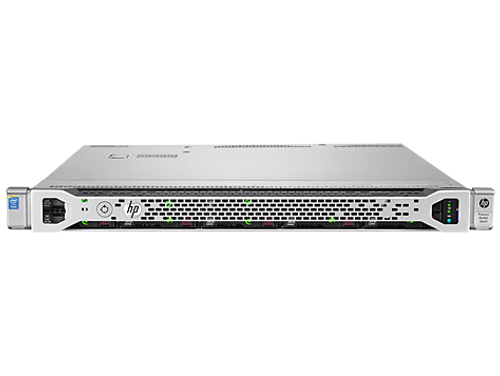

Does your data center need a performance driven dense 1U server that you can confidently deploy for virtualization, data base, or high-performance computing? The HPE ProLiant DL360 Gen9 Server delivers a 1U chassis with up to two processors, delivering an optimal unit that combines high-performance, low energy consumption, improved uptime, and increased density. Leveraging Intel's latest E5-2600 v4 processors with 21% performance gain, plus the latest 2400 MHz HPE DDR4 SmartMemory supporting up to 3 TB and up to 23% performance increase. Manage your DL360 Gen9 Server in any IT environment by automating the most essential server lifecycle management tasks with HPE OneView and HPE Integrated Lights-Out: deploy, update, monitor and maintain with ease.
Key Selling Points
- The HPE ProLiant DL360 Gen9 Server has up to 24 HPE DDR4 SmartMemory DIMM slots with up to 3 TB max memory, built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 23% better throughput performance.
- The HPE ProLiant DL360 Gen9 Server supports industry standard Intel Xeon E5-2600 v3 and E5-2600 v4 processors with up to 22 cores and 3 TB of HPE DDR4 SmartMemory.
- With the HPE ProLiant DL360 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.
- The HPE ProLiant DL360 Gen9 Server comes with a complete set of Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability. HPE provides consulting to transform your infrastructure; services to deploy, migrate and support your new ProLiant Servers.
Product Features
- Dense and Flexible High-Performance Compute Power
The HPE ProLiant DL360 Gen9 Server has up to 24 HPE DDR4 SmartMemory DIMM slots with up to 3 TB max memory, built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 23% better throughput performance.
You have a choice of Embedded 4x1GbE, HPE FlexibleLOM, PCIe standup 1GbE to 10/25GbE to 40GbE adapters which provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Achieve greater capacity with flexible drive configuration options with up to ten SFF, four LFF drive along with option to support up to six NVMe PCIe SSDs delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
HPE Persistent Memory, the world's first Non-volatile DIMM (NVDIMM) optimized on ProLiant, offering unprecedented levels of performance for databases and analytic workloads. - Industry-Leading Energy Efficiency for a Quicker Return on Your Investment
The HPE ProLiant DL360 Gen9 Server supports industry standard Intel Xeon E5-2600 v3 and E5-2600 v4 processors with up to 22 cores and 3 TB of HPE DDR4 SmartMemory.
The HPE ProLiant DL360 Gen9 Server supports improved ambient temperature standards with HPE Extended Ambient Operating Support (ASHRAE A3 and A4) helping to reduce your cooling expenses.
High efficiency redundant HPE Flexible Slot Power Supplies provide up to 96% efficiency (Titanium), HPE Flexible Slot Battery Backup module and support for the HPE Power Discovery Services offering.
ENERGY STAR qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money. - Agile Infrastructure Management for Accelerating IT Service Delivery
With the HPE ProLiant DL360 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.
Online personalized dashboard for Converged Infrastructure health monitoring and support management with HPE Insight Online.
Embedded management to deploy, monitor and support your DL360 Gen9 Server remotely, out of band with HPE iLO.
Configure in Unified Extensible Firmware Interface (UEFI) boot mode to provision local and remote servers with HPE ILO with Intelligent Provisioning and Scripting Toolkits.
Optimize firmware and driver updates and reduce downtime with Smart Update Solution, consisting of Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). - Industry Leading Serviceability
The HPE ProLiant DL360 Gen9 Server comes with a complete set of Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability. HPE provides consulting to transform your infrastructure; services to deploy, migrate and support your new ProLiant Servers.
HPE provides consulting advice to transform and modernize your infrastructure; services to deploy, migrate and support your new ProLiant servers and education to help you succeed quickly.
Worldwide availability, service and support for customers who have multiple data centers in multiple countries.
What's in the Box
- HPE ProLiant DL360 Gen9 Base
- HP Easy Install Rail kit
Specifications
| General | |
|---|---|
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Localization | Worldwide |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2630V3 / 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | |
| Installed Size | 16 GB / 384 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Memory Specification Compliance | PC4-17000 |
| Form Factor | DIMM 288-pin |
| Features | Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory |
| Configuration Features | 1 x 16 GB |
| RAM Supported | PC4-17000 - 768 GB Load-Reduced ¦ PC4-17000 - 384 GB registered |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x RAID - plug-in card - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | Smart Array P440ar with 2GB FBWC |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Matrox G200 |
| Video Interfaces | VGA |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HP 331i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 24 (total) / 23 (free) x DIMM 288-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HP iLO ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) |
| Miscellaneous | |
| Included Accessories | HP Easy Install Rail kit |
| Features | Administrator password, power-on password, keyboard password, serial port I/O control, QuickLock, UEFI BIOS |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 27.5 in |
| Height | 1.7 in |
| Weight | 27.01 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
