605865-B21
0
$40,749.00
New
Available
Limited warranty - 1 year
General | |
---|---|

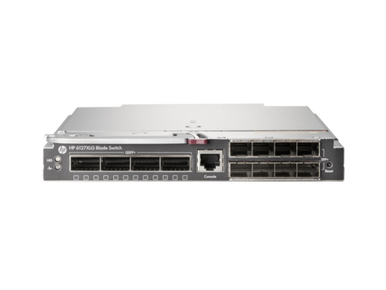

Device Type | Switch - 24 ports - managed - stackable |
Enclosure Type | Plug-in module |
Subtype | 10 Gigabit Ethernet |
Compatible Slots | 1 x expansion slot |
Ports | 16 x 10Gb Ethernet (backplane) + 4 x 10Gb Ethernet/8Gb Fibre Channel SFP+ + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
MAC Address Table Size | 32K entries |
Jumbo Frame Support | 9216 bytes |
Fibre Channel | FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI, FC-BB-5 |
Routing Protocol | IGMPv2, IGMP |
Remote Management Protocol | SNMP 1, SNMP 2, HTTP, HTTPS, CLI |
Encryption Algorithm | SSL |
Features | Auto-negotiation, LDAP support, VLAN support, IGMP snooping, manageable |
Compliant Standards | IEEE 802.2, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq |
Status Indicators | Port status, link OK, module locator, link/activity |
Expansion / Connectivity | |
Interfaces | 16 x 10Gb Ethernet - backplane ¦ 4 x 10Gb Ethernet / 8Gb Fibre Channel - SFP+ ¦ 4 x 10Gb Ethernet / 1Gb Ethernet - SFP+ |
Miscellaneous | |
Compliant Standards | UL, TUV, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55022 Class A, CB, AS/NZ 3548 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, MIC Class A, CSA C22.2 No. 60950-1 |
Software / System Requirements | |
Software Included | HP Virtual Connect Enterprise Manager (1 enclosure license) |
Dimensions & Weight | |
Width | 10.5 in |
Depth | 7.6 in |
Height | 1.1 in |
Weight | 2.8 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 1 year - on-site |
Environmental Parameters | |
Min Operating Temperature | 50 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 140 °F |
Compatibility Information | |
Designed For | HPE BLc7000 Enclosure ¦ HPE BLc7000 Enclosure Model X ¦ HPE BLc7000 Matrix with FlexFabric Expansion Kit ¦ HPE BLc7000 Single-Phase Enclosure ¦ HPE BLc7000 Three-Phase Enclosure ¦ HPE CloudSystem Matrix FlexFabric Starter Kit |
