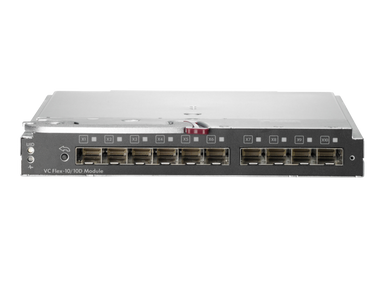

662048-B21 - HPE Virtual Connect Flex-10/10D Module Enterprise Edition for BLc7000 Option
MFG Part
662048-B21
Inventory
0
MSRP
$28,959.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Simplify and make your data center change-ready. The HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge.. VC Flex-10/10D modules converge traffic over high speed 10Gb connections to servers with HP FlexFabric Adapters. Each module provides four adjustable connections (three data and one storage, or four data) to each 10Gb server port. Eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to an upstream FCoE bridge. Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Virtual Connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.
Key Selling Points
- HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem simplifies networks by reducing cables without adding switches to manage
Product Features
- Extends virtualization benefits beyond the server by virtualizing server-to-network connections
HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem simplifies networks by reducing cables without adding switches to manage.
Allows you to wire once, then add, move and change network connections to thousands of servers in minutes instead of days or weeks - from one console without affecting your LAN and SAN.
Each module has thirty ports for a total effective full-duplex bandwidth of 600Gb, and ten dedicated SFP+ uplink ports, which can be 1 or 10GbE.
Reduces your network overhead costs by wiring once and making changes on the fly without additional network administrative support. Unlike other network virtualization offerings, Virtual Connect does not require manual changes to network connections each time a server is added or moved.
Eliminates network sprawl at the server edge and saves up to 47% on upstream ToR switch cable connections.
What's in the Box
- HPE Virtual Connect Flex-10/10D Module
- HP Virtual Connect Flex-10/10D Module
Specifications
| General | |
|---|---|
| Device Type | Load balancing device |
| Width | 3.7 in |
| Depth | 10.5 in |
| Height | 1.1 in |
| Weight | 2.8 lbs |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet |
| Network / Transport Protocol | iSCSI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2, CLI |
| Communication Mode | Full-duplex |
| Capacity | MAC addresses: 128000 ¦ IGMP groups: 1000 |
| Features | LDAP support, VLAN support, IGMP snooping, manageable, stackable, firmware upgradable, Jumbo Frames support, Link Aggregation Control Protocol (LACP) |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.2, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3aq |
| Expansion / Connectivity | |
| Interfaces | 16 x 10Gb Ethernet ¦ 10 x 10Gb Ethernet (uplink) - SFP+ ¦ 4 x 10Gb Ethernet - SFP+ ¦ 1 x management (USB) ¦ 1 x management |
| Miscellaneous | |
| Included Accessories | HP Virtual Connect Flex-10/10D Module |
| Compliant Standards | FCC Class A certified, UL, TUV, CISPR 22 Class A, cUL, EN55022 Class A, CB, FCC Part 15, UL 60950-1, EN 60950-1, WEEE, MIC Class A, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, VCCI Class A |
| Software / System Requirements | |
| Software Included | HP Virtual Connect Manager, HP Virtual Connect Enterprise Manager (1 enclosure license) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE BLc3000 Enclosure w/2 Power Supplies and 4 Fans, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment 30 Day Evaluation Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment for BladeSystem Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Trial Licenses, w/4 Power Supplies and 6 Fans with Insight Control Environment Trial License, w/6 Power Supplies and 6 Fans with 8 Insight Control Licenses, with 8 Insight Control Environment 30 Day Trial Licenses, with 8 Insight Control Environment for BladeSystem Licenses ¦ HPE BLc7000 Single-Phase Enclosure w/2 Power Supplies and 4 Fans w/16 Insight Control Env. Linux Edition Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Tower Licenses, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses ¦ HPE BLc7000 Three-Phase Enclosure w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/8 Insight Control Environment Trial Licenses |
