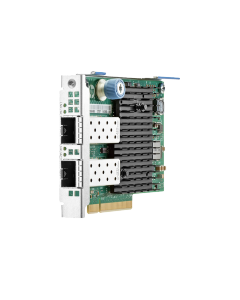

665243-B21 - HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
MFG Part
665243-B21
Inventory
0
MSRP
$679.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Do you need a 10GbE Adapter ideal for server virtualization, consolidating LAN and SAN, video applications, network segmentation and High Performance Computing (HPC)? The HPE Ethernet 10Gb 2-port 560 FLR-SFP+ FlexibleLOM adapter features low cost, low power dual port PCIe v2.0 x8 lane adapter designed for use in HPE ProLiant Gen8 Rack and scalable servers. The HPE 560FLR-SFP+ addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization and scalability to keep up with the HPE ProLiant Gen8 server platform, with the proven and reliable performance HPE customers have come to expect. The HPE 560FLR-SFP+ adapter enables connections with Direct Attach Copper cables as well as SR fiber optic modules. The HPE 560FLR-SFP+ supports high performance networking features such as VLAN tagging, low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), WOL, jumbo frames, PXE boot and virtualization features and is SR-IOV ready.
Key Selling Points
- 20 Gb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate) with SFP+ cages allows use of Direct Attach copper and SR fiber optic modules.
Product Features
- Dual-port 10 Gb Ethernet PCIe Gen 2.0, x8 Lane Adapter Designed for Maximum Network Performance
20 Gb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate) with SFP+ cages allows use of Direct Attach copper and SR fiber optic modules.
Intel Virtualization Technology for Connectivity (VT-c) with VMDq and SR-IOV supports VMware NetQueue and Microsoft VMQ helping to meet the performance demands of consolidated virtual workloads.
Supports Wake-on-LAN (WOL) at 1Gb and has PXE , MSI-X support, Teaming, and IPv6.
Adapter supports Hewlett Packard Enterprise Sea of Sensors 3D Technology.
New I/O technologies reduce system power, increases I/O performance and reduces I/O latency.
What's in the Box
- HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
- Quick install card
- Product warranty statement
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Remote Management Protocol | SNMP |
| Status Indicators | Port status, link/activity |
| Features | Wake on LAN (WOL), Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qau |
| Processor / Memory | |
| Processor | 1 Intel |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet |
| Compatible Slots | 1 x FlexibleLOM |
| Miscellaneous | |
| Compliant Standards | UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, EN55022 Class A, WEEE, FCC Part 15 A, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008 |
| Software / System Requirements | |
| OS Required | SunSoft Solaris 10, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Microsoft Windows Server 2008 (32/64-bits), Red Hat Enterprise Linux 5.x, VMware ESXi 4.1, VMware ESXi 5, VMware ESX, Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo 4520 Gen9 ¦ HPE ProLiant DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G) ¦ HPE SimpliVity 380 Gen9 Node ¦ HPE StoreEasy 1850, 3850 Gateway Single Node |
