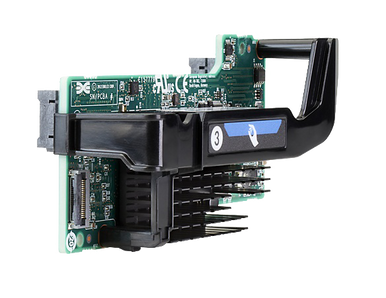

700764-B21 - HP FlexFabric 20Gb 2-port 650FLB FIO Adapter
MFG Part
700764-B21
Inventory
0
MSRP
$390.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
What if you could accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity? The HP FlexFabric 20Gb 2-port 650FLB adapter is installed in the FlexibleLOM socket prior to installing additional Mezzanine adapters. The adapter provides Tunnel Offload for efficient overlay networking to increase VM migration, flexibility and network scale with minimal impact to server performance.
Key Selling Points
- Lower costs and deliver faster services
- Improve network virtualization performance and scale with Tunnel Offload
- Improve operational agility with faster VM migration and storage data access
Product Features
- Lower costs and deliver faster services
The HP FlexFabric 20Gb 2-port 650FLB adapter is specifically designed for HP ProLiant Server Blade. It is a FlexibleLOM card which cost-effectively doubles server I/O bandwidth and avoids bottlenecks both today and in the future. Simplify the infrastructure by reducing the hardware, lowering operational costs and acquisition costs. It´s also designed to converge FCoE or RoCE with LAN traffic on a single Ethernet wire. - Improve network virtualization performance and scale with Tunnel Offload
The HP FlexFabric 20Gb 2-port 650FLB adapter uses Tunnel Offload and a 2x bandwidth improvement to take full advantage of overlay networking. Increase I/O throughput and reduce CPU and power consumption using Tunnel Offload. Increase the scale of VMs/VLANs and simplify network services provisioning. - Improve operational agility with faster VM migration and storage data access
The HP FlexFabric 20Gb 2-port 650FLB adapter provides faster Microsoft Hyper-V live migration (using SMB with RoCE instead of TCP/IP). Reduce CPU consumption, lower latency and improve host VM density and server efficiency using RoCE.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking | |
| Ports | 20 Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 20 Gigabit LAN |
| Data Transfer Rate | 20 Gbps |
| Network / Transport Protocol | TCP/IP |
| Remote Management Protocol | SNMP |
| Features | VLAN support, wake on LAN (WOL), full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Processor / Memory | |
| Processor | 1 Emulex |
| Expansion / Connectivity | |
| Expansion Slots | 1 x FlexibleLOM |
| Interfaces | 2 x 20Gb Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, ICES-003, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, RoHS, BSMI CNS 13438, KN22, KN24, EN55022:2010, EN55024:2010, MSIP, UL 60950-1:2007 |
| Pricing Type | Factory integrated |
| Power | |
| Power Consumption Operational | 7.6 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Systems Insight Manager (HP SIM) |
| OS Required | Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE ProLiant BL460c Gen10, BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL660c Gen9, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion |
