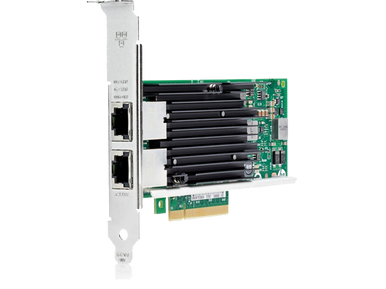

716591-B21 - HP Ethernet 10Gb 2-port 561T Adapter
MFG Part
716591-B21
Inventory
0
MSRP
$849.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Looking for a 10GBASE-T adapter for virtualization, consolidating LAN and SAN, video applications, network segmentation and high performance computing (HPC)? The HPE Ethernet 10GbE dual port 561T adapter features the 10GbE Intel Ethernet Controller X540. The HPE 561T is a low cost, low power dual port 10GBASE-T adapter designed for use in HPE ProLiant Gen8 rack, tower, and scalable servers. The HPE 561T addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, and scalability to keep up with the HPE ProLiant Gen8 server platform, with proven and reliable performance Hewlett Packard Enterprise customers have come to expect. The HPE 561T adapter enables connections with standard CAT6 or better UTP cabling. The HPE 561T supports high performance networking features such as VLAN tagging, low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot, and virtualization features which are VMDq and SR-IOV ready.
Key Selling Points
- 20Gbps full duplex Ethernet transfer rate per port.
Product Features
- Dual-port 10Gb Ethernet 10GBASE-T Standup Adapter Designed for Maximum Network Performance
20Gbps full duplex Ethernet transfer rate per port.
Intel Virtualization Technology for Connectivity (VT-c) with VMDq and SR-IOV supports VMware NetQueue and Microsoft VMQ helping to meet the performance demands of consolidated virtual workloads.
Supports PXE, MSI-X support, Teaming, and IPv6.
Adapter supports HPE Sea of Sensors 3D Technology.
New Intel Data Direct I/O technologies reduces system power, increases I/O performance and reduces I/O latency.
What's in the Box
- 1. HP Ethernet 10Gb 2-port 561T Adapter
- 2. Quick install card
- 3. Product warranty statement
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.1 x8 |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Remote Management Protocol | SNMP |
| Status Indicators | Port status, link/activity |
| Features | Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO) |
| Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau |
| Processor / Memory | |
| Processor | 1 x x540 - Intel |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet - RJ-45 |
| Miscellaneous | |
| Compliant Standards | UL, BSMI, BSMI CNS 13438 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, WEEE, FCC Part 15 A, VCCI V-3 Class A ITE |
| Software / System Requirements | |
| OS Required | SunSoft Solaris 10, Microsoft Windows Server 2008 Foundation, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Red Hat Enterprise Linux 6, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Citrix XenServer 6.0, Microsoft Windows Server 2012, SunSoft Solaris 11, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo pc40, sx40 ¦ HPE ProLiant DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350p Gen8, ML350p Gen8 Special Server, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, SL4540 Gen8, SL4540 Gen8 Tray 2x Node Server, SL4545 G7, XL170r Gen9, XL190r Gen9 ¦ HPE SimpliVity 380 Gen9 Node ¦ HPE StoreEasy 1450, 1850, 3850 Gateway Single Node |
