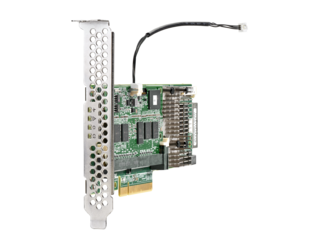

726757-B21 - HP H240ar 12Gb 1-port Int Smart Host Bus Adapter
MFG Part
726757-B21
Inventory
0
MSRP
$249.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Do you need a cost effective controller that provides fast access to the data on the internal server drives and without using a PCIe slot? The HPE H240ar Smart Host Bus Adapter comes in a Flexible Smart SAS HBA form factor that provides a reliable, high performing SAS connectivity to the data in the server internal drives. Supported on select Gen9 servers, it features eight internal physical links and it delivers 12 Gb/s SAS performance. The H240ar Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities. Unlike the HPE Smart Array Controllers, the H240ar does not offer any acceleration or support cache modules.
Key Selling Points
- The HPE H240ar Smart Host Bus Adapter comes in a Flexible Smart SAS HBA form factor that provides a basic building block for simple RAID storage solution for select HPE Gen9 Servers with a Flexible Smart Array & SAS HBA slot.
- The HPE H240ar Smart Host Bus Adapter and the attached internal storage devices are configured, deployed and managed by the easy to use HPE Smart Storage Administrator software which is included in the intelligent provisioning capabilities of the server.
Product Features
- Cost-Effective SAS Storage Connectivity
The HPE H240ar Smart Host Bus Adapter comes in a Flexible Smart SAS HBA form factor that provides a basic building block for simple RAID storage solution for select HPE Gen9 Servers with a Flexible Smart Array & SAS HBA slot.
Delivering up to 12 Gb/s SAS connectivity for internal hard drives it provides increased scalability, basic data protection, and flexibility for storage connectivity.
You get optimized performance and uptime for your entry-level storage requirements.
This HBA supports SAS, SATA, Solid State Drives (SSDs) and internal tape drives for increased flexibility. - Efficient and Simple Configuration, Deployment and Management
The HPE H240ar Smart Host Bus Adapter and the attached internal storage devices are configured, deployed and managed by the easy to use HPE Smart Storage Administrator software which is included in the intelligent provisioning capabilities of the server.
Delivers proactive service warnings and analysis based on Solid State Drive (SSD) endurance reports from the HPE SmartSSD Wear Gauge utility.
Simplify the management of the attached storage pool with HPE Smart Storage Administrator.
What's in the Box
- #BLANK##
Specifications
| General | |
|---|---|
| Device Type | Storage controller - plug-in module |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Expansion / Connectivity | |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4i Mini MultiLane SAS (SFF-8087) (internal) |
| Miscellaneous | |
| Compliant Standards | WEEE |
| Software / System Requirements | |
| OS Required | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year |
| Dimensions & Weight | |
| Width | 1.2 in |
| Depth | 5.3 in |
| Height | 3.6 in |
| Compatibility Information | |
| Designed For | HPE ProLiant DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance |
