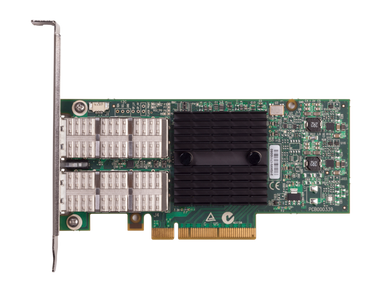

764286-B21 - HP InfiniBand QDR/Ethernet 10Gb 2-port 544+FLR-QSFP Adapter
MFG Part
764286-B21
Inventory
0
MSRP
$995.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Do you need a 10Gb 2-port Adapter that is designed to optimize cloud efficiency and improve performance? The HPE Ethernet 10Gb 2-port 546 SFP+ Adapter offers performance, efficiency and security for applications where I/O, block storage and database performance are critical and the need for maximum Virtual Machine density and up-scalability are greatest. It also offers full integration with the most popular cloud orchestration packages.
Key Selling Points
- Provides hardware offloads which free CPU cycles to run application workloads rather than virtual network transport processing.
- Delivers low-latency and high performance over Ethernet networks with RoCE for faster storage access
Product Features
- Delivers Outstanding Server and Storage Utilization
Provides hardware offloads which free CPU cycles to run application workloads rather than virtual network transport processing.
Effectively addresses the increasing demand for an overlay network, enabling superior performance by introducing advanced NVGRE and VXLAN hardware offload engines.
Data center operators can decouple the overlay network layer from the physical NIC performance, thus achieving native performance in the new network architecture. - Low Latency RDMA Over Converged Ethernet (RoCE) and VXLAN
Delivers low-latency and high performance over Ethernet networks with RoCE for faster storage access.
Frees up CPU cycles and allow more processing power to be used for the application instead of for moving data.
Offloads VXLAN operations from the hypervisor to the NIC.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Ports | 10 Gigabit SFP+ x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Features | IPv6 support, Quality of Service (QoS), IPv4 support, PXE support, Large Send Offload (LSO), TCP Segmentation Offload (TSO), TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Processor / Memory | |
| Processor | 1 x Mellanox ConnectX-3 |
| RAM | 128 MB |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb InfiniBand QDR/Ethernet - QSFP+ |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CISPR 22 Class A, EN55024, EN55022 Class A, WHQL, ICES-003 Class A, WEEE, RoHS, MIC Class A, ACA, BSMI Class A, ACPI 1.1a, VCCI Class A |
| Power | |
| Power Consumption Operational | 8.4 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen8, DL580 Gen8 Base, DL580 Gen8 High Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G) ¦ HPE StoreEasy 1450, 1850, 3850 Gateway Single Node |
