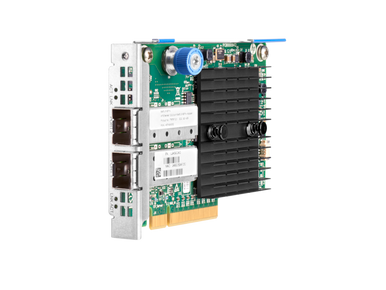

779799-B21 - HP Ethernet 10Gb 2-port 546FLR-SFP+ Adapter

MFG Part

779799-B21

MSRP

$599.00

Condition

New

Availability

Available

Standard Warranty

Limited warranty - 1 year



Do you need Network Virtualization and increased performance for your HPE ProLiant server? The HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter is designed to optimize Cloud efficiency, and improve performance and security of applications-especially where IO, block storage and database performance are critical and the need for maximum VM density and up-scalability are greatest.

Key Selling Points

  • Provides hardware offloads which free CPU cycles to run application workloads rather than virtual network transport processing.
  • Delivers low-latency and high performance over Ethernet networks.

Product Features

  • Delivers Outstanding Server and Storage Utilization
    Provides hardware offloads which free CPU cycles to run application workloads rather than virtual network transport processing.
    Effectively addresses the increasing demand for an overlay network, enabling superior performance by introducing advanced NVGRE and VXLAN hardware offload engines.
    Data center operators can decouple the overlay network layer from the physical NIC performance, thus achieving native performance in the new network architecture.
    Full integration with the most popular cloud orchestration packages.
  • Low Latency RDMA Over Converged Ethernet (RoCE)
    Delivers low-latency and high performance over Ethernet networks.
    Frees up CPU cycles and allow more processing power to be used for the application instead of for moving data.
    Faster storage Access by using RDMA over Converged Ethernet.
    Offload VXLAN operations from the hypervisor to the NIC.

Specifications

General
Device TypeNetwork adapter
Form FactorPlug-in card
Interface (Bus) TypePCI Express 3.0 x8
Networking
Ports10 Gigabit SFP+ x 2
Connectivity TechnologyWired
Data Link Protocol10 GigE
Data Transfer Rate10 Gbps
Network / Transport ProtocolTCP/IP
FeaturesIPv6 support, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, RDMA over Converged Ethernet (RoCE)
Compliant StandardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
Processor / Memory
ProcessorMellanox ConnectX-3
RAM128 MB
Expansion / Connectivity
Interfaces2 x 10Gb Ethernet - SFP+
Miscellaneous
Compliant StandardsFCC Class A certified, UL, CISPR 22 Class A, EN55024, EN55022 Class A, WHQL, ICES-003 Class A, WEEE, RoHS, MIC Class A, ACA, BSMI Class A, ACPI 1.1a, VCCI Class A
Software / System Requirements
OS RequiredMicrosoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12
Dimensions & Weight
Width2.2 in
Depth9.5 in
Height7.5 in
Weight15.87 oz
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature131 °F
Humidity Range Operating15 - 80% (non-condensing)
Compatibility Information
Designed ForHPE Apollo 4520 Gen9 ¦ HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen8, DL580 Gen8 Base, DL580 Gen8 High Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G) ¦ HPE StoreEasy 1850, 3850 Gateway Single Node
