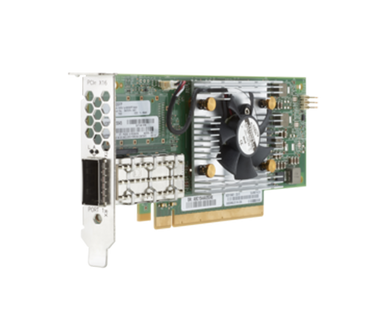

817762-B21 - HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter
MFG Part
817762-B21
Inventory
0
MSRP
$1,299.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
Stuck in network traffic at 10Gbps? Time to take the Express Lane with HPE 25GbE Adapters. Increased workload demands are putting pressure on server I/O. The HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter is a 1-port Ethernet adapter providing 4 lanes of 25 Gb connectivity designed for select HPE ProLiant Gen9 and Apollo Servers. This is the solution of choice for workload-intensive computing environments like web-scale data centers and cloud-based service providers.
Key Selling Points
- The HPE Ethernet 25Gb 1-port 620 QSFP28 Adapter support RoCE which frees CPU cycle to perform other tasks such as hosting more virtual workload.
- The HPE Ethernet 25Gb 1-port 620 QSFP28 Adapter delivers 4 separate channels delivering 2.5 times more performance compared to existing 10GbE solutions.
Product Features
- Increase Host Efficiency and Virtualization Performance
The HPE Ethernet 25Gb 1-port 620 QSFP28 Adapter support RoCE which frees CPU cycle to perform other tasks such as hosting more virtual workload.
Reduces overall latency to deliver accelerated performance for applications such as Microsoft Hyper-V Live Migration, Microsoft SQL and Microsoft SharePoint with SMB Direct. - Satisfy the Hunger for More Bandwidth
The HPE Ethernet 25Gb 1-port 620 QSFP28 Adapter delivers 4 separate channels delivering 2.5 times more performance compared to existing 10GbE solutions.
By offloading packet processing to adapters, customers can use overlay networking to increase VM migration flexibility and network scale with minimal impact to performance.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | FlexibleLOM |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Ports | 100 Gigabit QSFP28 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Performance | Bidirectional throughput: 200 Gbps |
| Capacity | Jumbo frame size: up to 9 KB |
| Remote Management Protocol | SNMP |
| Status Indicators | Status, link/activity |
| Features | VLAN support, IPv6 support, full duplex mode, Jumbo Frames support, IPv4 support, PXE support, LACP support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), TCP Offload Engine (TOE), Precision Time Protocol (PTP), TCP/IP checksum offload, UDP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x |
| Processor / Memory | |
| Processor | Qlogic |
| RAM | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - QSFP28 |
| Miscellaneous | |
| Compliant Standards | UL, BSMI, EN 60950, EN55024, RoHS, FCC Part 15 A, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, KN22 Class A, VCCI V-3/2010.04 Class A, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, BSMI CNS13438:2006 Class A |
| Power | |
| Power Consumption Operational | 23 Watt |
| Software / System Requirements | |
| OS Required | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 with Hyper-V, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.2, VMware ESXi 6.0, Microsoft Windows Server 2012 R2 with Hyper-V |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen9, 4510 Gen9 ¦ HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen10 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL360 Gen9 Special Server, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 Database, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-up Base Configuration, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry, XL170r Gen10, XL230k Gen10 Compute Tray, XL450 Gen10 |
