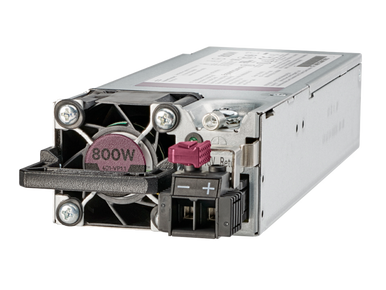

865434-B21 - HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit
MFG Part
865434-B21
Inventory
0
MSRP
$519.00
Condition
New
Availability
Available
Standard Warranty
Limited warranty - 1 year
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE server solutions. HPE's Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
Key Selling Points
- Titanium-certified power efficiency
- Flex slot design
- Multiple power output options
- Power management
Product Features
- Titanium-certified power efficiency
Titanium power efficiency certification from 80Plus program - one of the highest power efficiency certifications available in the IT industry reduces data center operating costs related to power by reducing server power requirements and power waste. - Flex slot design
Tool-less hot plug design improves serviceability buy allowing quick and easy access to system power supplies. - Multiple power output options
Multiple output options allowing users to "right-size" their power needs and avoid "trapped" power capacity in their data centers caused by over-subscribing power needs. Support for both low-line and high-line AC input voltages providing additional flexibility to operate in multiple. - Power management
Supports multiple operating modes to maximize power efficiency when configuring servers with redundant power supplies.
Specifications
| General | |
|---|---|
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Specification Compliance | Flex Slot |
| Power Device | |
| Input Voltage | DC -48 V |
| Input Voltage Range | DC -40 - -72 V |
| Frequency Required | 50 - 60 Hz |
| Power Capacity | 800 Watt / 883 VA |
| Efficiency | 94% |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | |
| Compliant Standards | UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 8.9 in |
| Height | 1.6 in |
| Weight | 32.1 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.5 in |
| Shipping Depth | 14.8 in |
| Shipping Height | 5.8 in |
| Shipping Weight | 3.51 lbs |
| Compatibility Information | |
| Designed For | HPE ProLiant DL360 Gen10 (800 Watt), DL360 Gen10 Base (800 Watt), DL360 Gen10 Entry (800 Watt), DL360 Gen10 High Performance (800 Watt), DL360 Gen10 Low (800 Watt), DL360 Gen10 Performance (800 Watt), DL360 Gen10 Solution (800 Watt), DL380 Gen10 (800 Watt), DL380 Gen10 Base (800 Watt), DL380 Gen10 Entry (800 Watt), DL380 Gen10 High Performance (800 Watt), DL380 Gen10 Performance (800 Watt), DL380 Gen10 Solution (800 Watt), DL385 Gen10 (800 Watt), DL385 Gen10 Base (800 Watt), DL385 Gen10 Entry (800 Watt), DL385 Gen10 High-Performance (800 Watt), DL385 Gen10 Performance (800 Watt), DL385 Gen10 Solution (800 Watt), DL560 Gen10 (800 Watt), DL560 Gen10 Base (800 Watt), DL560 Gen10 Entry (800 Watt), DL560 Gen10 Performance (800 Watt), ML350 Gen10 (800 Watt), ML350 Gen10 Base (800 Watt), ML350 Gen10 Entry (800 Watt), ML350 Gen10 Performance (800 Watt), ML350 Gen10 Solution (800 Watt), ML350 Gen10 Sub-Entry (800 Watt) |
