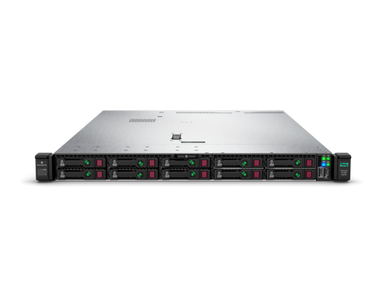

867963-B21 - HPE DL360 Gen10 5118 2P 32G 8SFF Svr

MFG Part

867963-B21

Inventory

0

MSRP

$9,649.00

Condition

New

Availability

Available

Standard Warranty

Limited warranty - parts and labor - 3 years - on-site - response time: next business day



Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 Server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 71% performance gain and 27% increase in cores , along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 66% . With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.

Key Selling Points

  • HPE ProLiant DL360 Gen10 Server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2666 MT/s HPE DDR4 SmartMemory.
  • The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
  • HPE iLO 5 enables the world€™s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
  • HPE ProLiant DL360 Gen10 Server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.

Product Features

  • Industry-leading Performance with Versatile Compute
    HPE ProLiant DL360 Gen10 Server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2666 MT/s HPE DDR4 SmartMemory.
    With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 Server delivers up to 192 GB per system.
    Achieve greater capacity with flexible drive configuration options with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivers enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
    HPE Persistent Memory, the world's first non-volatile DIMM (NVDIMM) optimized on HPE ProLiant , offers up to 20X reduction in database restart time preserving maximum uptime.
  • Innovative Design for Flexibility and Choice
    The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
    Embedded 4x 1GbE along with HPE FlexibleLOM or PCIe standup 1GbE, 10GbE, or 25GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
    Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.
  • Security Innovations
    HPE iLO 5 enables the world's most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
    Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
    Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
    Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
  • Industry-Leading Serviceability and Deployment
    HPE ProLiant DL360 Gen10 Server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.
    Services from HPE Pointnext simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
    Services provided under Operational Services include - HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
    HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

What's in the Box

  • HPE ProLiant DL360 Gen10 Performance
  • HPE Easy Install Rails, HPE standard heatsink, 7 x standard hot plug fans
  • 1 x power cable

Specifications

General
Type Server
Product Form Factor Rack-mountable - 1U
Built-in Devices LED panel, battery
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localization Region: Worldwide
Processor / Chipset
CPU Intel Xeon Gold 5118 / 2.3 GHz
Number of Cores 12-core
CPU Qty 2
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology
CPU Socket Socket P
Chipset Type Intel C621
Cache Memory
Installed Size L3 cache - 33 MB
Cache Per Processor 16.5 MB
RAM
Installed Size 32 GB / 3 TB (max)
Technology DDR4 SDRAM
Effective Memory Speed 2400 MHz
Rated Memory Speed 2666 MHz
Memory Specification Compliance PC4-20800
Form Factor DIMM 288-pin
Slots 24 (total) / 22 (empty)
Features Dual rank
Configuration Features 2 x 16 GB
RAM Supported PC4-20800 - 3.072 TB Load-Reduced ¦ PC4-20800 - 768 GB registered ¦ PC4-20800 - 192 GB Non-Volatile
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name HPE Smart Array P408i-a
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size 2 GB
Storage Controller (2nd)
Type SATA
Storage Controller Name HPE Smart Array S100i SR Software
Optical Storage
Type No optical drive
Card Reader
Type Card reader
Supported Flash Memory Cards microSD
Monitor
Monitor Type None.
Graphics Controller
Video Memory 16 MB
Video Interfaces VGA
Networking
Interface (Bus) Type FlexibleLOM
Ethernet Ports 4 x Gigabit Ethernet, 2 x 25 Gigabit Ethernet
Ethernet Controller HP 640FLR
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 5
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 24 (total) / 22 (free) x DIMM 288-pin ¦ 2 (total) / 0 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 0 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces 1 x HP iLO - Type A (1 in front) ¦ 1 x HP iLO - RJ-45 (1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 2 x LAN (25Gigabit Ethernet) (SFP28) (2 rear)
Miscellaneous
Included Accessories HPE Easy Install Rails, HPE standard heatsink, 7 x standard hot plug fans
Cables Included Power cable
Compliant Standards AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, FIPS 201 PIV, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type Power supply - hot-plug / redundant
Power Redundancy Yes
Power Redundancy Scheme 1+1
Installed Qty 2
Max Supported Qty 2
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 800 Watt
Operating System / Software
OS Certified CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software HPE Server UEFI
Environmental Standards
ENERGY STAR Certified Yes
ENERGY STAR Version 2.1
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days
Dimensions & Weight
Width 17.1 in
Depth 27.8 in
Height 1.7 in
Weight 28.75 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Sound Emission 38.1 dBA
