875759-S01
0
$2,699.00
New
Available
Limited warranty - parts and labor - 3 years - on-site - response time: next business day

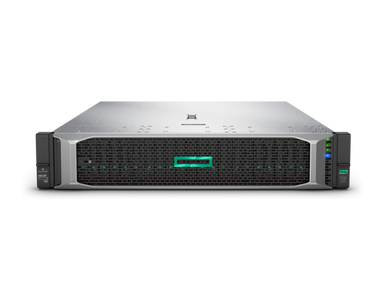

What is your server bottleneck...storage, compute, expansion? The world's best-selling server just got better. The HPE ProLiant DL380 Gen10 Server delivers the latest in security, performance and expandability. While backed by a comprehensive warranty, makes it ideal for any server environment. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 Server is securely designed to reduce costs and complexity, the Intel Xeon Processor Scalable Family with up to a 71% performance gain and 27% increase in cores , plus the HPE 2666 MT/s DDR4 SmartMemory supporting 3.0 TB and up to 11% faster than 2400 MT/s. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory, optimized on HPE ProLiant Servers, offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and deploy with confidence.
General | |
---|---|
Type | Server |
Product Form Factor | Rack-mountable - 2U |
Built-in Devices | Battery |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 8 |
Processor / Chipset | |
CPU | Intel Xeon Silver 4112 / 2.6 GHz |
Max Turbo Speed | 3 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
CPU Socket | Socket P |
Chipset Type | Intel C621 |
Cache Memory | |
Installed Size | L3 cache - 8.25 MB |
Cache Per Processor | 8.25 MB |
RAM | |
Installed Size | 16 GB / 768 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 2400 MHz |
Rated Memory Speed | 2666 MHz |
Memory Specification Compliance | PC4-20800 |
Form Factor | DIMM 288-pin |
Slots | 12 (total) / 11 (empty) |
Features | Registered, HP SmartMemory, 6-channel memory architecture |
Configuration Features | 1 x 16 GB |
RAM Supported | PC4-20800 - 768 GB registered ¦ PC4-20800 - 1.5 TB Load-Reduced |
Hard Drive | |
Type | No HDD |
Storage Controller | |
Type | 1 x RAID |
Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name | HPE Smart Array P408i-a |
Channel Qty | 8 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
Buffer Size | 2 GB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Video Memory | 16 MB |
Video Interfaces | VGA |
Networking | |
Ethernet Ports | 4 x Gigabit Ethernet |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Controller | Integrated Lights-Out 5 |
Features | Wake on LAN (WoL), PXE support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Expansion / Connectivity | |
Bays | 8 (total) / 8 (free) x hot-swap 3.5" LFF |
Slots | 2 (total) / 1 (free) x CPU ¦ 12 (total) / 11 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 (1 rear) ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x DisplayPort (1 in front) ¦ 1 x USB 2.0 (1 in front) |
Miscellaneous | |
Included Accessories | HP Easy Install Rail kit, 4 x standard hot plug fans, CPU standard heatsink |
Compliant Standards | AES, ACPI 6.1 |
Manufacturer Selling Program | HPE Smart Buy |
Power | |
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Installed Qty | 1 |
Max Supported Qty | 2 |
Nominal Voltage | AC 120/230 V (50/60 Hz) |
Power Provided | 500 Watt |
Operating System / Software | |
OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
Software | HPE Server UEFI |
Environmental Standards | |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 2.1 |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width | 17.5 in |
Depth | 28.7 in |
Height | 3.4 in |
Weight | 32.85 lbs |
Environmental Parameters | |
Min Operating Temperature | 50 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 8 - 90% (non-condensing) |
