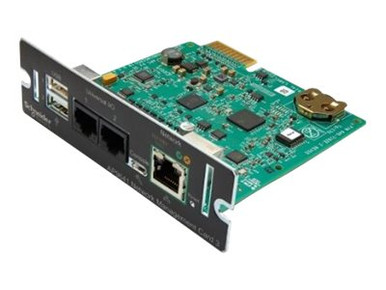

AP9641 -- UPS NETWORK MGMT CARD IPv6 W/TEMP PROBE

MFG Part

AP9641

Inventory

126

MSRP

$846.00

Condition

New

Availability

Available

Standard Warranty

2-year warranty



Marketing description

Remote monitoring and control of an individual UPS by connecting it directly to the network.

Product Features

  • BACnet/IP Support for Smart-UPS
    Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
  • Command line interface
    Offers simultaneous remote management access through Telnet and SSH
  • Compatible with Smart-UPS
    Compatible with Smart-UPS. /a
  • Device Encryption
    Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • Expandable Input and Output Ports
    Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
  • Gigabit Ethernet Support
    Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support
    Capable of operating on a network using IPv6 protocol
  • Micro-USB based Console Support
    For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support
    Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support
    Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access
    Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Root of Trust Support
    Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support
    Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible
    Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update
    User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

What's in the Box

  • Temperature sensor
  • USB cable
  • User manual
