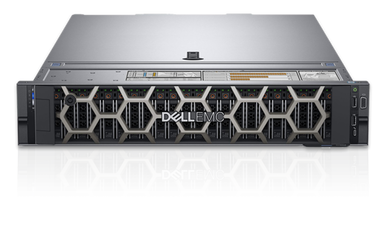

Certified Refurbished - R740 Chassis with up to 16 x 2.5" SAS/SATA Hard Drives

MFG Part





Certified Refurbished



Standard Warranty

Limited warranty - parts and labor - 5 years - on-site - response time: next business day

Maximize application performance with the optimal mix of accelerator cards, storage and compute power in a platform optimized for VDI.

Key Selling Points

  • Achieve IT transformation
  • Automate productivity with intelligent, embedded management

Product Features

  • Achieve IT transformation
    The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage.
  • Automate productivity with intelligent, embedded management
    Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.

What's in the Box

  • Dell EMC PowerEdge R740
  • Bezel, ReadyRails sliding rails without cable management arm


Type Server
Product Form Factor Rack-mountable - 2U
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability 2-way
Hot-Swap Bays Qty Up to 16
Processor / Chipset
CPU Intel Scabable Processors
CPU Qty 0
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Intel Turbo Boost Technology 2
Form Factor DIMM 288-pin
Slots 24 (total) / 24 (empty)
RAM Supported 1536 GB Load-Reduced - ECC ¦ 768 GB registered - ECC
Monitor Type None.
Graphics Controller
Video Interfaces VGA
Remote Management Controller Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9)
Expansion / Connectivity
Bays Up to 16 (total)
Slots 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 4 PCIe 3.0 x8
Interfaces 4 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A (2 in front) ¦ 1 x USB 2.0 - micro-USB (1 in front) ¦ 1 x management (NIC) ¦ 1 x serial ¦ 2 x VGA (1 front, 1 rear)
Accessories Bezel, ReadyRails sliding rails,  cable management arm
Pricing Type Configure to Order
Operating System / Software
OS Provided No operating system
Environmental Standards
ENERGY STAR Certified Yes
Manufacturer Warranty
Service & Support Limited warranty - 5 years - on-site - response time: next business day
Dimensions & Weight
Width 19 in
Depth 29.6 in
Height 3.4 in
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 80%
