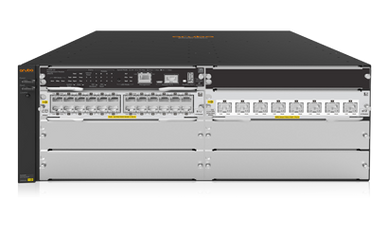

J9825A - HPE 5412R-92G-PoE+/2SFP+ (No PSU) v2 zl2 Switch

MFG Part

J9825A

MSRP

$11,977.00

Condition

New

Availability

Available

Standard Warranty

Limited warranty - Lifetime



The Aruba 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing. The 5400R is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Key Selling Points

  • The Aruba 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity for the latest 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to mobile campus networks.
  • The Aruba 5400R zl2 Switch Series using the sixth generation ProVision ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
  • The Aruba 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
  • The Aruba 5400R zl2 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

Product Features

  • Power and Innovation For Your Digital Workplace
    The Aruba 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity for the latest 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to mobile campus networks.
    Based on the 6th generation ProVision ASIC, the Aruba 5400R has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency and built-in programmable and easy to use REST API interface that provides configuration automation for Mobile-first campus networks.
    Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate 40GbE uplinks, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.
    Optimized for the digital workplace with unified management and security tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
    License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, VRRP, OSPF, Tunneled node and robust QoS.
  • Resiliency and High Availability at the Edge
    The Aruba 5400R zl2 Switch Series using the sixth generation ProVision ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
    Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
    Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
    Redundant management and power systems enhance system availability and continuity of operations. Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
    Virtual Switching Framework (VSF) virtualizes up to two physical switches into one logical device for simpler, flatter, more agile networks. Fast Software Upgrade minimizes downtime during upgrade on 5400R VSF stack.
  • Robust Security and Dynamic Quality of Service (QoS)
    The Aruba 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
    Flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACsec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
    Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
    Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access. Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
    Tunneled Node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller.
  • Simplify with Integrated Wired/Wireless Management
    The Aruba 5400R zl2 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
    Supports Aruba Airwave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
    RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
    Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
    Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.

What's in the Box

  • (1) Aruba 5412R zl2 Switch (J9822A),
  • (1) Aruba 5400R zl2 Management Module (J9827A)
  • (1) Aruba 5412R zl2 Switch Fan Tray (J9832A)
  • (3) HPE 24-port Gig-T PoE+ v2 zl Module (J9534A)
  • (1) HPE 20-port Gig-T PoE+/2-port 10GbE SFP+ v2 zl Module (J9536A)

Specifications

General
Device TypeSwitch - 92 ports - managed
Enclosure TypeRack-mountable 7U
SubtypeGigabit Ethernet
Ports92 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
PerformanceRouting/switching capacity: 1920 Gbps ¦ Throughput: up to 1142.8 Mpps ¦ Switching fabric bandwidth: 2030 Gbps
CapacityIPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size64K entries
Jumbo Frame SupportYes
Routing ProtocolRIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Encryption AlgorithmSSL
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
FeaturesFlow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor1 x Freescale P2020: 1.2 GHz
RAM4 GB DDR3 SDRAM
Flash Memory1 GB
Expansion / Connectivity
Interfaces92 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x RJ-45 management ¦ 1 x management
Expansion Slots12 (total) / 8 (free) x expansion slot ¦ 1 (total) / 0 (free) x SD Memory Card
Installed Modules Qty (Max)4 (installed) / 12 (max)
Power
Power DeviceInternal power supply
Installed Qty0 (installed) / 4 (max)
Miscellaneous
Included AccessoriesFan tray
Rack Mounting KitIncluded
Compliant StandardsFCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950
Dimensions & Weight
Width17.5 in
Depth17.8 in
Height12.1 in
Weight45.19 lbs
Manufacturer Warranty
Service & SupportLimited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 3 years
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature113 °F
Humidity Range Operating15 - 95% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
Humidity Range Storage15 - 95% (non-condensing)
