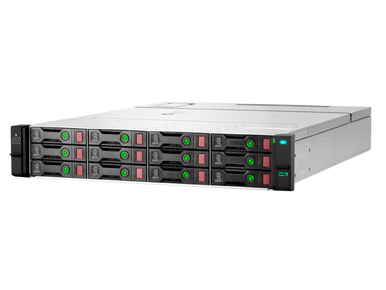

Q1J09A - HPE D3610 Enclosure

MFG Part








Standard Warranty

Limited warranty - parts and labor - 3 years - on-site - response time: next business day

Has your business exceeded your storage capacity? Manage your small and midrange business' growing storage needs by deploying the HPE D3000 Enclosures, the next generation 12 Gb SAS low-cost, high-capacity, tiered external storage system. The HPE D3000 Enclosures are ideal for your small application environments, remote offices and departmental locations. The 12 Gb SAS enclosures - large form factor (LFF) D3600/D3610 with 12 drive bays and small form factor (SFF) D3700/D3710 with 25 drive bays-offer flexible, modular solutions to simplify capacity expansion of HPE ProLiant server and HPE BladeSystem environments to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow. HPE D3000 enclosures support HPE SmartDrive Carriers. Buy and maintain a common set of HPE ProLiant drives for Gen8 and Gen9 ProLiant Servers. Total support can grow up to 96 LFF or 200 SFF drives.

Key Selling Points

  • Affordable storage for capacity demand
  • Flexible and scalable with room to expand
  • Easy to manage

Product Features

  • Affordable storage for capacity demand
    HPE D3000 Enclosures 12 Gb SAS provides a higher level of redundancy and reliability, reducing single-points-of-failure within the storage network. The modular platform provides investment protection by allowing purchases based on your current need and future plans without hidden management fees.
  • Flexible and scalable with room to expand
    The HPE D3000 Enclosures give you the flexibility to mix and match SAS, SATA and Solid State drives in the same enclosure, and extend the benefit of tiered storage to your customers.
  • Easy to manage
    The HPE D3000 Enclosures support the HPE SmartDrive carrier, enabling a single set of common drives for Gen8 and Gen9 ProLiant servers and D3000 Enclosures.


Device TypeStorage enclosure
Enclosure TypeRack-mountable - 2U
Installed Devices / Modules Qty12
Supported Devices / Modules Qty12
Supported DrivesSATA-600 / SAS-3
Max Supported Capacity120 TB
Hard Drive
TypeNo HDD
Expansion / Connectivity
Expansion Bays12 (total) / 12 (free) x hot-swap - 3.5" LFF
Interfaces1 x SAS 12Gb/s
FeaturesRedundant fans, 92% efficiency power supply
Cables Included2 x mini SAS HD cable - 1.6 ft
Software IncludedHP StoreVirtual VSA license
Included AccessoriesRack mounting kit, 2 x PDU interconnect cords
Power Device2 x internal power supply - hot-plug
Max Supported Qty2
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 120/230 V - 50/60 Hz
Power Provided460 Watt
80 PLUS Certification80 PLUS Gold
Dimensions & Weight
Width17.6 in
Depth23.5 in
Height3.4 in
Weight37.92 lbs
Manufacturer Warranty
Service & SupportLimited warranty - parts - 3 years
Environmental Parameters
Min Operating Temperature50 °F
Max Operating Temperature104 °F
Humidity Range Operating10 - 90%
Sound Emission53 dBA
