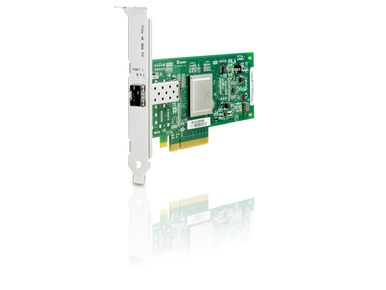

QW971A - HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

MFG Part

QW971A

Inventory

0

MSRP

$1,799.00

Condition

New

Availability

Available

Standard Warranty

Limited warranty - 1 year



Looking for a high bandwidth solution to meet the requirements of increasing server virtualization and consolidation? Finding it difficult to realize the full bandwidth potential of your server running I/O intensive applications? HPE StoreFabric SN1000Q 16Gb Host Bus Adapters enable more rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for greater virtual machine density and bandwidth requirement environments, the SN1000Q 16Gb HBA enables more applications and virtual machines to run on a single server and port, resulting in reduced cabling and higher return on IT investment. The SN1000Q 16Gb HBA is backward compatible with 8 and 4 Gb storage networks and will protect future investments. With the ability to deliver twice the I/O performance of 8 Gb FC HBAs. The SN1000Q takes Storage Networking performance and efficiency to the next level.

Key Selling Points

  • The HPE StoreFabric SN1000Q 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb Fibre Channel HBAs.
  • Ideal for the implementation of virtual servers with the power to drive multiple virtual machines.
  • Power savings result in lower operating expenditure.

Product Features

  • The Highest Performing Fibre Channel Host Bus Adapters
    The HPE StoreFabric SN1000Q 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb Fibre Channel HBAs.
    Moving to 16 Gb technology provides the infrastructure required for the more powerful servers and data intensive applications of the future.
    When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.
  • Best Fibre Channel Host Bus Adapters for Virtualization
    Ideal for the implementation of virtual servers with the power to drive multiple virtual machines.
    Allows a single port to acquire multiple N Port IDs, eliminating the need for additional physical ports.
    Datacenter administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict.
    Improves host utilization and enhances application performance.
  • Next Generation Host Bus Adapters with Improved IOPS Performance per Watt
    Power savings result in lower operating expenditure.

What's in the Box

  • (1) 16Gb 1-port HBA with standard bracket, (1) 16 Gb/s SFP+, low-profile bracket, documentation

Specifications

General
Device TypeHost bus adapter
Form FactorPlug-in card - low profile
Interface (Bus) TypePCI Express 3.0 x4
Networking
Ports16Gb Fibre Channel
Connectivity TechnologyWired
Data Link Protocol16Gb Fibre Channel (SW)
FeaturesAuto-negotiation
Expansion / Connectivity
Expansion Slots2 (total) / 0 (free) x SFP+
Interfaces1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2
Compatible Slots1 x PCI Express 3.0 x4
Miscellaneous
Included AccessoriesLow-profile bracket, full-height bracket, 2 x 16Gb SFP+
Dimensions & Weight
Width0.6 in
Depth6.6 in
Height4.7 in
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature131 °F
Humidity Range Operating10 - 90% (non-condensing)
Compatibility Information
Designed ForHPE Modular Smart Array 2040 SAS Dual Controller LFF Storage ¦ HPE ProLiant DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance ¦ HPE StoreEasy 3850 Gateway Single Node
