Realtek ALC650

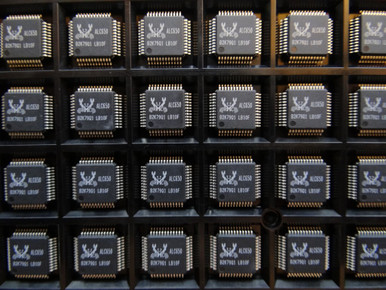

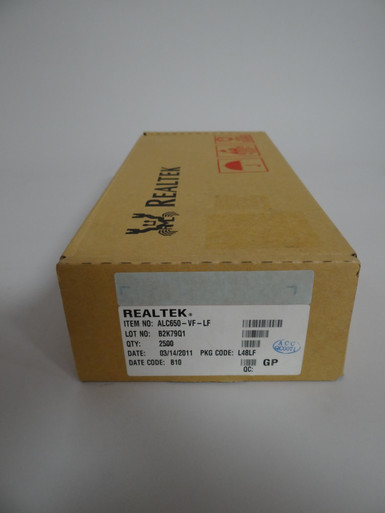

Fornida has acquired a number of brand new Realtek ALC650 processors in original manufacturers packaging. As part of Fornida’s commitment to quality, selected processors have been fully tested and X-Rayed to ensure perfect functionality and authenticity.

Overview
The ALC650 is an 18-bit, full duplex AC’97 2.2 compatible stereo audio CODEC designed for PC multimedia systems, including host/soft audio and AMR/CNR based designs. The ALC650 incorporates proprietary converter technology to achieve a high SNR, greater than 90 dB. The ALC650 AC’97 CODEC supports multiple CODEC extensions with independent variable sampling rates and built-in 3D effects. The ALC650 CODEC provides three pairs of stereo outputs with independent volume controls, a mono output, and multiple stereo and mono inputs, along with flexible mixing, gain and mute functions to provide a complete integrated audio solution for PCs.

The digital interface circuitry of the ALC650 CODEC operates from a 3.3V power supply with EAPD (External Amplifier Power Down) control for use in notebook and PC applications. The ALC650 integrates a 50mW/20ohm headset audio amplifier into the CODEC, which can save BOM costs. The ALC650 also supports an AC’97 2.2 compliant SPDIF out function which allows easy connection of the PC to consumer electronic products, such as AC3 decoder/speaker and minidisk. The ALC650 CODEC supports host/soft audio from Intel 810/815/820/845 chipsets as well as audio controller based VIA/SIS/ALI chipsets. Bundled Windows series drivers (Win95/98/ME/2000/XP/NT) and sound effect utilities (supporting Karaoke, emulation of 26 sound environments, and 10-band equalizer) provide a more comprehensive entertainment package for PC users. Finally, internal PLL circuits generate required timing signals, eliminating the need for external clocking devices.
