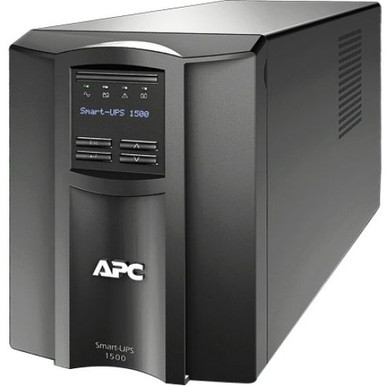

APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS is a UPS you can count on.
Key Selling Points
- Pure sine wave output on battery
- Cold-start capable
- Temperature-compensated battery charging
- Green mode
- High online efficiency
- Intuitive LCD interface
- Predictive replace battery date
- Single switched outlet group
- SmartSlot
- Energy meter
Product Features
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics - Cold-start capable
Provides temporary battery power when the utility power is out - Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature - Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection - High online efficiency
Reduces utility costs, generates less heat - Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys - Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning - Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding - SmartSlot
Customize UPS capabilities with management cards - Energy meter
Provides actual kilowatt hours of usage for energy conscious users
What's in the Box
- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable
Specifications
General |
---|
Device Type | UPS - external |
---|
Battery Enclosure Type | Internal |
---|
Color | Black |
---|
Power Device |
---|
UPS Technology | Line interactive |
---|
Input Voltage | AC 120 V |
---|
Input Voltage Range | AC 82 - 144 V |
---|
Input Voltage Range (Adjustable) | AC 75 - 154 V |
---|
Frequency Provided | 50/60 Hz |
---|
Frequency Required | 50/60 Hz |
---|
Input Connectors | 1 x power NEMA 5-15 |
---|
Power Output Connectors Details | 8 x power NEMA 5-15 |
---|
Output Voltage | AC 120 V ± 5% - 50/60 Hz |
---|
Power Capacity | 1 kW / 1440 VA |
---|
Output Waveform | Sinewave |
---|
Surge Suppression | Yes |
---|
Surge Energy Rating | 459 Joules |
---|
Battery |
---|
Technology | Lead acid |
---|
Run Time (Up To) | 7 min at full load |
---|
Recharge Time | 3 hours |
---|
Networking |
---|
Remote Management Interface | RS-232, USB |
---|
Expansion / Connectivity |
---|
Interfaces | 1 x management (RS-232) - 25 pin D-Sub (DB-25) ¦ 1 x management (USB) |
---|
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
---|
Miscellaneous |
---|
Cables Included | USB cable - external ¦ Power cable 6 ft |
---|
Manufacturer Warranty |
---|
Service & Support | Limited warranty - 2 years |
---|
Environmental Parameters |
---|
Min Operating Temperature | 32 °F |
---|
Max Operating Temperature | 104 °F |
---|
Humidity Range Operating | 0 - 95% |
---|
Sound Emission | 45 dBA |
---|
Dimensions & Weight |
---|
Width | 6.7 in |
---|
Depth | 17.3 in |
---|
Height | 8.5 in |
---|
Weight | 53.13 lbs |
---|
Dimensions & Weight (Shipping) |
---|
Shipping Width | 13 in |
---|
Shipping Depth | 23 in |
---|
Shipping Height | 15 in |
---|
Shipping Weight | 58.2 lbs |
---|
